VHF filters - response measurements

I've measured a few DDAMTEK filters and an RTL-SDR FM-stop filter.

DDAMTEK filters

These three DDAMTEK filters were measured with my DG8SAQ Vector Network Analyser (VNWA) on 2012-Oct-19.  The VNWA was first calibrated to 0.01 - 200 MHz, but I make no claims for the accuracy of these measurements.

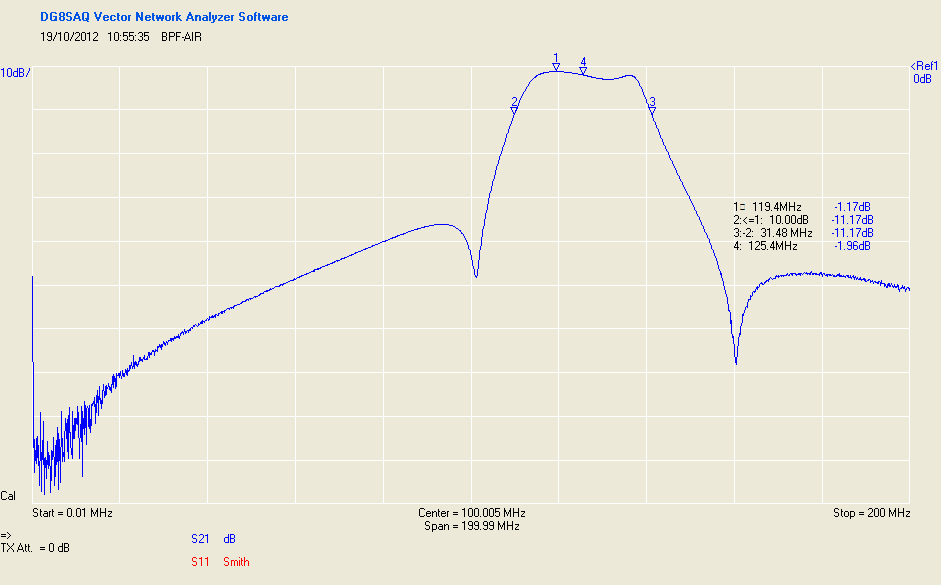

BPF-AIR: 112 - 140 MHz bandpass filter

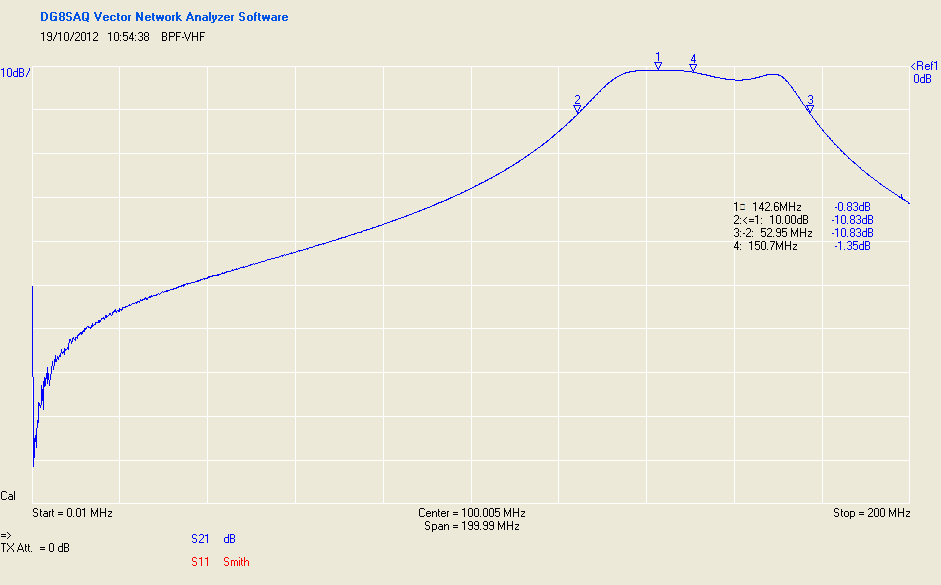

BPF-VHF: 137 - 174 MHz bandpass filter

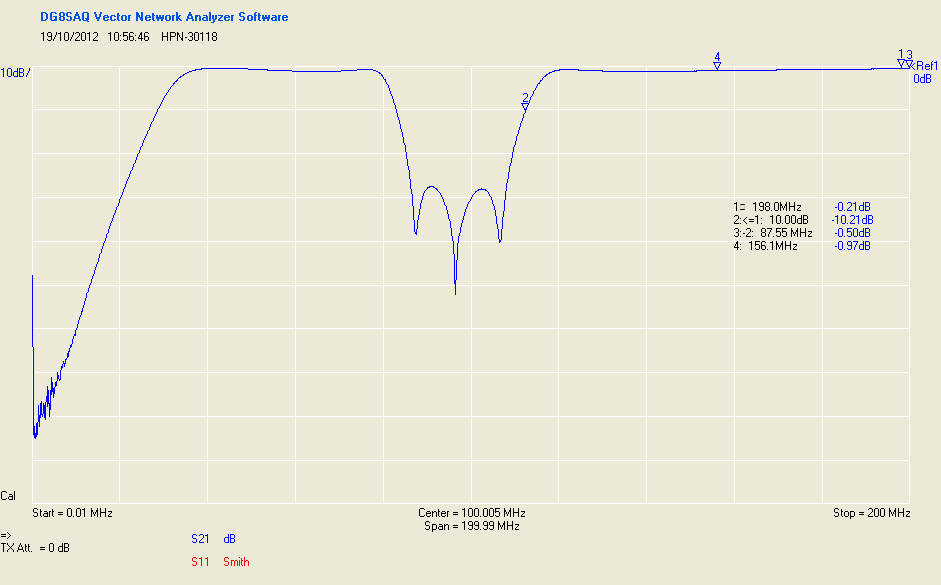

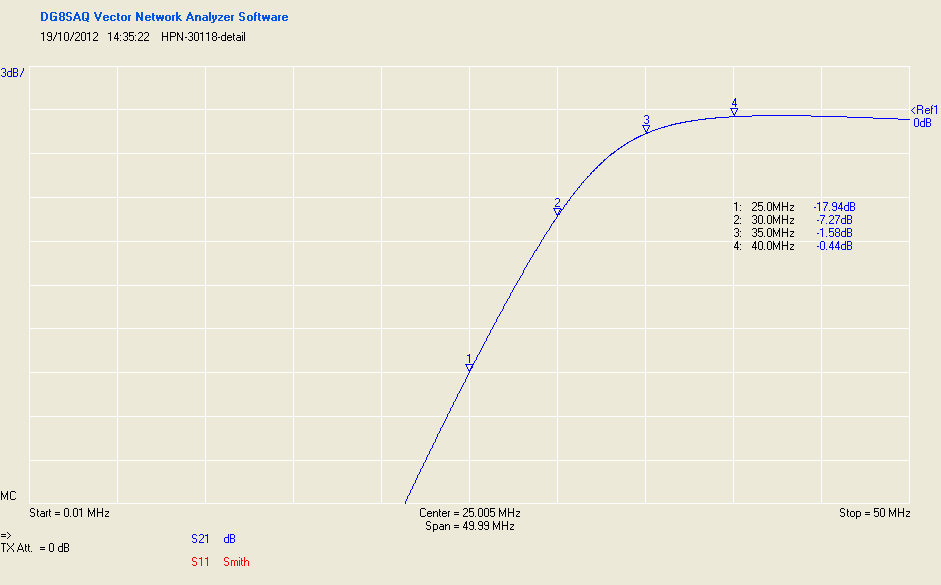

HPN-30118: 30 MHz high-pass and 87 - 108 MHz notch filter

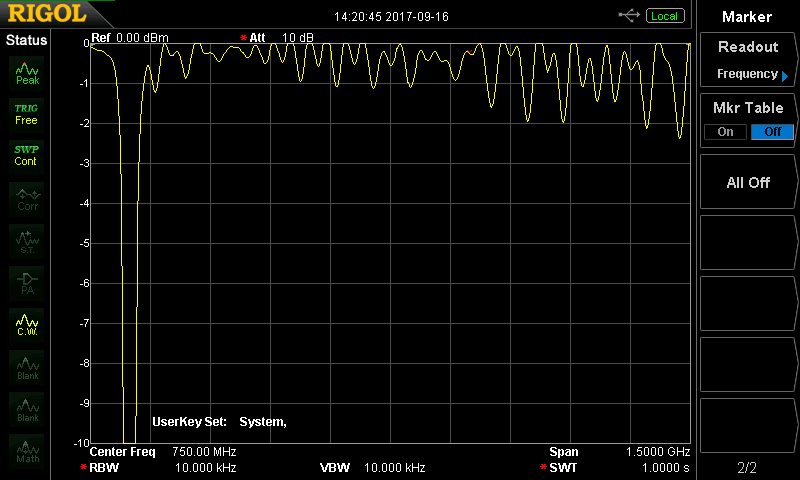

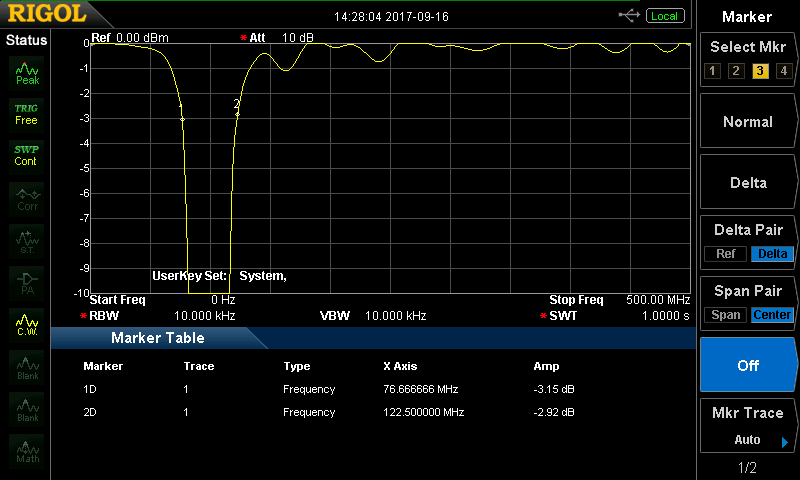

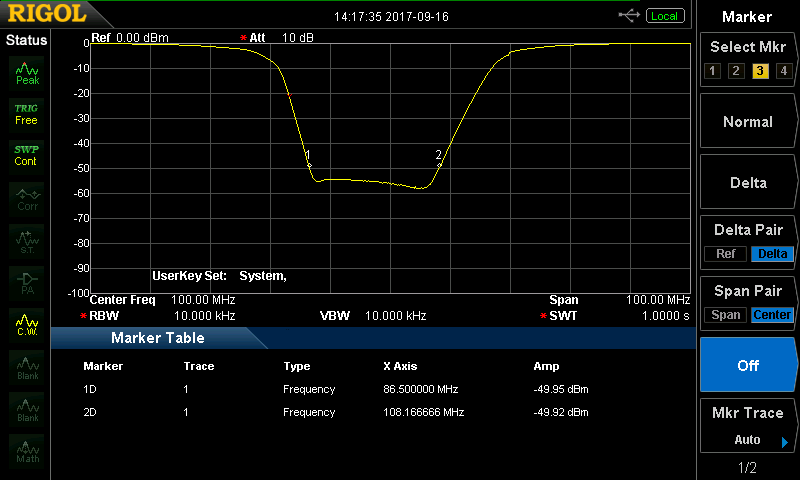

RTL-SDR.com 88-108 MHz bandstop filter

Click for details
