Timekeeping, temperature and GPS satellites

RasPi-3, Raspberry Pi model B
Timekeeping
U-blox MAX-M8Q-0-10, 25 mm patch indoors
Downstairs, floor level
near south-facing wall
CPU temperature
u-blox MAX-M8Q-0-10 (inc. Galileo)
GPS Satellites
Potentially visible
Actually used
GPS SNR average

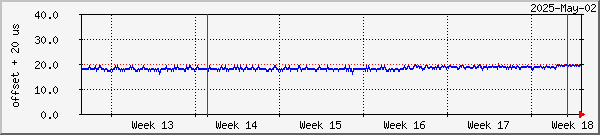

RasPi-10, Raspberry Pi model 2 B
Timekeeping
"No-soldering" GPS/PPS sync
Upstairs, high up, fair view, heated room

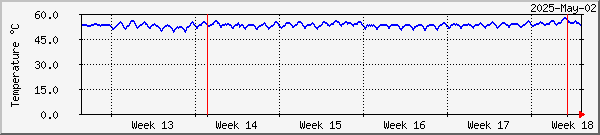

CPU temperature
u-blox MAX-M8Q
GPS Satellites
Potentially visible
Actually used
GPS SNR average

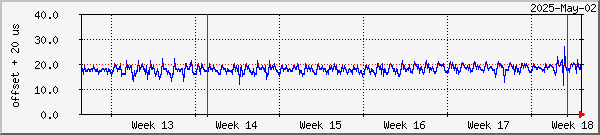

RasPi-12, Raspberry Pi model 3 B
Timekeeping
"No-soldering" GPS/PPS sync
Near CH radiator
Loft dome antenna

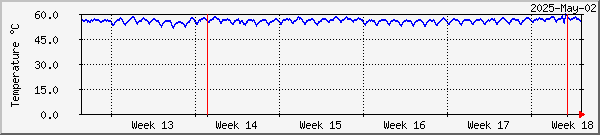

CPU temperature
u-blox MAX-M8Q
GPS Satellites
Potentially visible
Actually used
GPS SNR average

RasPi-13, Raspberry Pi model 3 B
Timekeeping
"No-soldering" GPS/PPS sync
Upstairs, heated room, near north-facing wall
CPU temperature
u-blox MAX-M8Q
GPS Satellites
Potentially visible
Actually used
GPS SNR average

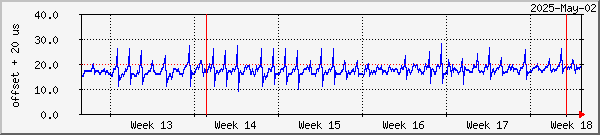

RasPi-22, Raspberry Pi model 4 B
Timekeeping
Uputronics MAX-M8Q-0-10 GPS/PPS sync
Upstairs in the middle of a south-facing room

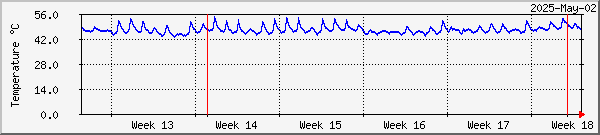

CPU temperature
u-blox MAX-M8Q-0-10
GPS Satellites (includes Galileo)
Potentially visible
Actually used
GPS SNR average

RasPi-23, Raspberry Pi model 4 B, 64-bit OS [PPS after 2020-May-31, week 22]
Timekeeping
VK2828U7G5LF GPS module GPS/PPS sync
In north-west facing cupboard
CPU temperature
VK2828U7G5LF GPS module
GPS Satellites
Potentially visible
Actually used
GPS SNR average


Other periods: day week month year

How were these plots generated?

Using the Raspberry Pi as a Wi-Fi Plane Plotter server
Installing and configuring the Raspberry Pi
Using the Raspberry Pi as a stratum-1 NTP server
