EUMETCast comparison of transponders 1 & 2 - Hotbird 13G

SNR difference  - from two separate Ayecka SR1 receivers
SNR difference TP1 - TP2
When BAS/HVS-1 is stronger
No data 2023-Jul-24 to Aug-02
SNR difference TP2 - TP1
When HVS-2 is stronger
Only after 2023-Jul-24

HVS Link Margin
Hotbird 13G 14 11470 MHz V
TBS6903
HVS-2 link margin
Ayecka SR1 #3
HVS-2 link margin
Hotbird 13G 1 11219 MHz H
Ayecka SR1 #2
HVS-1 link margin
Ayecka SR1 #1
HVS-1 link margin

TelliCast
- lost packets
Hotbird 13G 14 11470 MHz V

HVS-2 lost packets
TP2
PC Lund TBS6903

HVS-2 lost packets
TP2
PC Oslo Ayecka SR1 #3
Hotbird 13G 1 11219 MHz H

HVS-1 lost packets
TP1
PC Oslo Ayecka SR1 #2

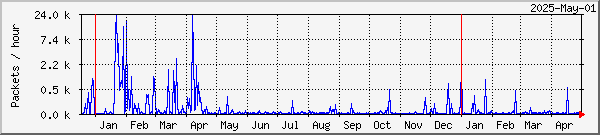

HVS-1 lost packets
TP1
PC Kiruna Ayecka SR1 #2

Traffic
Hotbird 13G 14 11470 MHz V
TBS6903
MODCOD: 16APSK2/3
All PIDs
Ayecka SR1 #3
MODCOD: 16APSK2/3
PIDs: 610
Ayecka SR1 #3
MODCOD: 16APSK2/3
PIDs: 610

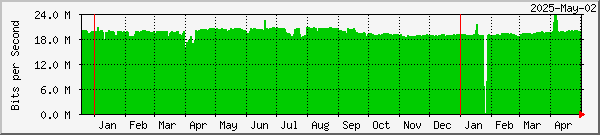

PC Oslo HVS-2 traffic
Hotbird 13G 1 11219 MHz H
Ayecka SR1 #2
BAS & HVS-1
MODCOD: 8PSK3/5 16APSK2/3
PIDs: 100 500 600 601
Ayecka SR1 #2
BAS & HVS-1
PC Kiruna HVS-1 traffic
Ayecka SR1 #2
BAS & HVS-1
PC Oslo [BAS]/HVS-1 traffic
Ayecka SR1 #1
BAS & HVS-1
MODCOD: 8PSK3/5 16APSK2/3
8PSK3/5 alone until May 21
PIDs: 100 500 600 601

SNR - signal-to-noise ratio
Hotbird 13G 14 11470 MHz V
TBS6903
TP2
Ayecka SR1 #3
TP2
Hotbird 13G 1 11219 MHz H
Ayecka SR1 #2
TP1

BER - bit error rate
Hotbird 13G 14 11470 MHz V
TBS6903
TP2
Ayecka SR1 #3
TP2
Hotbird 13G 1 11219 MHz H
Ayecka SR1 #2
TP1

RF level - higher plot means lower signal
Hotbird 13G 14 11470 MHz V
TBS6903
TP2
Ayecka SR1 #3
TP2
Hotbird 13G 1 11219 MHz H
Ayecka SR1 #2
TP1

Other periods: day week month year

This data is taken from PCs fed by Ayecka SR1 IP and TBS receivers.  The RF feeds are shown in red.  The antenna is pointed to the EUTELSAT 10A satellite at 10° E, to change to EUTELSAT 10B in July-2023.  Readings are taken every five minutes, and X-axis times are in UTC.  From late September 2017 the main RF feed has been changed to have a 4-way splitter - there's enough signal to allow this, otherwise an in-line amplifier could have been added.  The four outputs are used to feed the three main receivers.  Output two from the LNB is used for BAS/HVS-1, three is used for HVS-2, and output four allows direct access to the LNB for polarisation tests, which would otherwise interfere with routine reception.

Multiple receive PCs are fed from the Traffic LAN ports of the Ayecka SR 1 IP receivers on a private LANs (192.168.10.x/20.x) via GS605 Netgear switches, with 1 Gbps network cards added to the receiver PCs.  An Edimax USB2.0-Ethernet adapter is an alternative because of the need to use USB or better drivers.  Ayecka SR1 #2 receiver takes both BAS and HVS-1.  BAS is received by PC Oslo.  HVS-1 is received and processed by PC Kiruna, and received by PC Lund, processed by PC Penguin..  From Feb-2017 PC Lund monitors HVS-1 & HVS-2 with a single-cable TBS6903 dual-tuner PCIe card, but this arrangement had to be abandoned when HVS-2 was switched to a transponder with a different polarisation in late 2022..

The Ayecka SR1 Management ports are connected to the existing 192.168.0.x house LAN, through which management access is possible from any local PC.


125 cm antenna with quad-output LNB pointed at EUTELSAT HOTBIRD 13G


Output 1   Output 2   Output 3       Output 4
|| ||     || ||

2-way splitter

|| 2-way splitter     ||
DC-pass        RF only          || RF only   DC-pass  ||
||     ||         || || || ||
Ayecka
SR1  #1
BAS only
(spare)
TBS5927
Ayecka
SR1  #2
BAS & HVS-1
TBS6903
dual-tuner
PCIe
Ayecka
SR1  #3
HVS-2 only
TBS5925
box
USB              pass-through
       | | | ||
1 Gbps
Ethernet
1 Gbps
Ethernet
      PCIe
     card
1 Gbps
Ethernet
USB 2.0
|
||
||
        | | |  Airspy SDR Mini
 hardware

  <======Private

LAN

===>

<==Private

LAN

=v==    |

=v       |

|
|     | |         |

   |        |

| |
i5-760 PC
Alta
Receive BAS
Process BAS
i5-4460 PC
Harstad
Receive BAS
i5-8400 PC
Penguin
BAS recv & process
HVS-1 process
i7-4770K PC
Kiruna
BAS process
HVS-1 receive
HVS-1 process
 i5-6400 PC
Lund
Recv HVS-1
Recv HVS-2
i7-10700- PC
Oslo

Recv HVS-1
Recv HVS-2
 Tablet test PC
Vega
BDADataEx  CrazyScan
SDR#  Spectrum Spy
Smart DVB & TS analyser

Transponder spectrum & constellation comparison
