Router & Cable Modem on Virgin Media broadband

Router data throughput
VM Hub-3 500 Mbps down, 50 Mbps up
Upstream to CM (red line - max upload)
Downstream from CM
Router data upload to cable modem
Upstream to CM in more detail
UKHost4u Web server connection

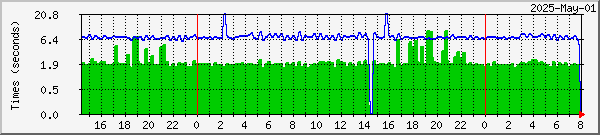

Upload time to server
Unzip time on server
Note the log vertical axis!
15-minute updates
(0 => no connection, or server down)

Router internals

Netgear R8000 router running DD-WRT

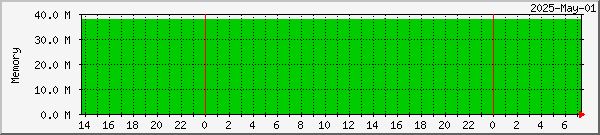

Router memory used
256 MB available

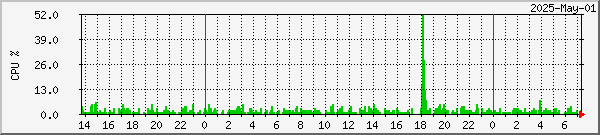

Router CPU usage

Other periods: day week month year

Configuration

Network
configuration
2023-Dec-20



16-port
switch



Windows PCs
Raspberry Pi cards



Router

 NETGEAR
R8000

 Wi-F not used





LeoNTP
time-server

500/50 Mbps
Virgin Media
 Cable Internet

Virgin Media
Hub 3.0
Dual-NAT

Arris
VMDG505
TG2492LG-VM

Arris
TG2492
Ayecka #1  BAS
Ayecka #3  HVS-2
management ports
8-port
switch

Windows PCs
Raspberry Pi cards
 Wi-Fi access point
2.4 & 5  GHz
Ayecka #2  HVS-1
management port
