Edinburgh EUMETCast Basic Service Throughput

HVS-1   HVS-2

Ayecka SR1 IP receiver #1 - unfiltered by TelliCast channel selection
Ayecka SR1
Traffic port output
8PSK 3/5 & 16APSK 2/3 MODCODs
Both BAS and HVS-1 data
PC Network throughput - filtered by TelliCast channel selection
Win-10/64 PC Alta - RX and process
Ayecka SR1 #1, TelliCast 2.14.5
Intel i5-760, 8 GB
MSG-3, MSG-4 RSS, free DWDSAT
EARS-AVHRR & Metop-A/B AVHRR
Win-10/64 PC Harstad - RX only
Ayecka SR1 #1, TelliCast 2.14.5
Intel i5-4460, 8 GB
MSG-3, MSG-4 RSS, free DWDSAT
EARS-AVHRR & Metop-A/B AVHRR


Edinburgh EUMETCast High Volume Service - 1

Ayecka SR1 IP receiver #2 I/O - unfiltered by channel selection
Ayecka SR1 #2
Traffic port output
8PSK 3/5 & 16APSK 2/3 MODCODs
BAS & HVS-1 PIDs: 100 500 600 601
Both BAS & HVS-1 data
PC network throughput - filtered by TelliCast channel selection - all channels
General purpose PC Kiruna
Ayecka SR1 #2, TelliCast 2.14.5
Intel i7-4400K, 16 GB
Windows-10/64 Pro
HVS-1 data RX & process
PC Lund
HVS-1 data RX
PC Oslo
HVS-1 data RX


Edinburgh EUMETCast High Volume Service - 2

TBS6903 PCie card in PC Lund- unfiltered by channel selection
BDADataEx 1.1.4.1409
TAP adapter output
16APSK 2/3 MODCOD
All PIDs (8192)
Ayecka SR1 IP receiver #3 I/O - unfiltered by channel selection
Ayecka SR1 #3
Traffic port output
16APSK 2/3 MODCOD
HVS-2 PID: 610
Ayecka SR1 #3

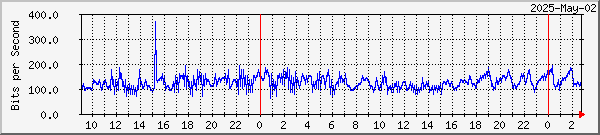

Traffic port input
PC network I/O - unfiltered by channel selection
PC Oslo
Ayecka SR1 #3, TelliCast 2.14.7
i7-10700KF, 8-core, 32 GB
Windows-11/64 Pro
All data, no processing yet


Other periods: day week month year

This data is taken from PCs fed by Ayecka SR1 IP and TBS receivers.  The RF feeds are shown in red.  The antenna is pointed to the EUTELSAT 10A satellite at 10° E, to change to EUTELSAT 10B in July-2023.  Readings are taken every five minutes, and X-axis times are in UTC.  From late September 2017 the main RF feed has been changed to have a 4-way splitter - there's enough signal to allow this, otherwise an in-line amplifier could have been added.  The four outputs are used to feed the three main receivers.  Output two from the LNB is used for BAS/HVS-1, three is used for HVS-2, and output four allows direct access to the LNB for polarisation tests, which would otherwise interfere with routine reception.

Multiple receive PCs are fed from the Traffic LAN ports of the Ayecka SR 1 IP receivers on a private LANs (192.168.10.x/20.x) via GS605 Netgear switches, with 1 Gbps network cards added to the receiver PCs.  An Edimax USB2.0-Ethernet adapter is an alternative because of the need to use USB or better drivers.  Ayecka SR1 #2 receiver takes both BAS and HVS-1.  BAS is received by PC Oslo.  HVS-1 is received and processed by PC Kiruna, and received by PC Lund, processed by PC Penguin..  From Feb-2017 PC Lund monitors HVS-1 & HVS-2 with a single-cable TBS6903 dual-tuner PCIe card, but this arrangement had to be abandoned when HVS-2 was switched to a transponder with a different polarisation in late 2022..

The Ayecka SR1 Management ports are connected to the existing 192.168.0.x house LAN, through which management access is possible from any local PC.


125 cm antenna with quad-output LNB pointed at EUTELSAT HOTBIRD 13G


Output 1   Output 2   Output 3       Output 4
|| ||     || ||

2-way splitter

|| 2-way splitter     ||
DC-pass        RF only          || RF only   DC-pass  ||
||     ||         || || || ||
Ayecka
SR1  #1
BAS only
(spare)
TBS5927
Ayecka
SR1  #2
BAS & HVS-1
TBS6903
dual-tuner
PCIe
Ayecka
SR1  #3
HVS-2 only
TBS5925
box
USB              pass-through
       | | | ||
1 Gbps
Ethernet
1 Gbps
Ethernet
      PCIe
     card
1 Gbps
Ethernet
USB 2.0
|
||
||
        | | |  Airspy SDR Mini
 hardware

  <======Private

LAN

===>

<==Private

LAN

=v==    |

=v       |

|
|     | |         |

   |        |

| |
i5-760 PC
Alta
Receive BAS
Process BAS
i5-4460 PC
Harstad
Receive BAS
i5-8400 PC
Penguin
BAS recv & process
HVS-1 process
i7-4770K PC
Kiruna
BAS process
HVS-1 receive
HVS-1 process
 i5-6400 PC
Lund
Recv HVS-1
Recv HVS-2
i7-10700- PC
Oslo

Recv HVS-1
Recv HVS-2
 Tablet test PC
Vega
BDADataEx  CrazyScan
SDR#  Spectrum Spy
Smart DVB & TS analyser
