GPS DOP and millimetre error - Edinburgh, Scotland

All data from Raspberry Pi 4 (2 GB RasPi-25) using a Uputronics GPS/RTC module with an outdoor antenna.
The module (a u-blox MAX-M8Q-0-10) is set to use all three GNSS constellations.   Location: 55.9° N, 3.2° W
Values are those reported by the u-blox firmware.

Estimated position error - peaks well above the average may indicate solar storm activity
2D error (EPH)
Altitude error (EPV)
(smaller is better)

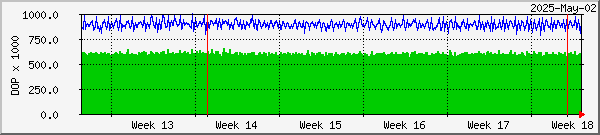

DOP - Dilution of Precision
Horizontal DOP
Vertical DOP
(smaller is better)

Number of satellites visible and used
Potentially visible
Actually used

Average SNR
GPS SNR average


Other periods: day week month year

How were these plots generated?
